• Surface mounting, metal sheet case
• Scratch and rust resistant electrostatic powder paint
• Polycarbonate illuminated panel
USAGE AREAS
• Highway Tunnel
LAMP OPTIONS
• White light LED,6500°K
BODY STRUCTURE
• Body - Electrostatic powder black painted 1,5 mm sheet
• Label panel - 5 mm solid polycarbonate panel, latex printing on white foil
• BATTERY- Nickel-cadmium in all
OPTIONS
• Continuous and emergency models
PRODUCT DOCUMENT
PRODUCT INFORMATION

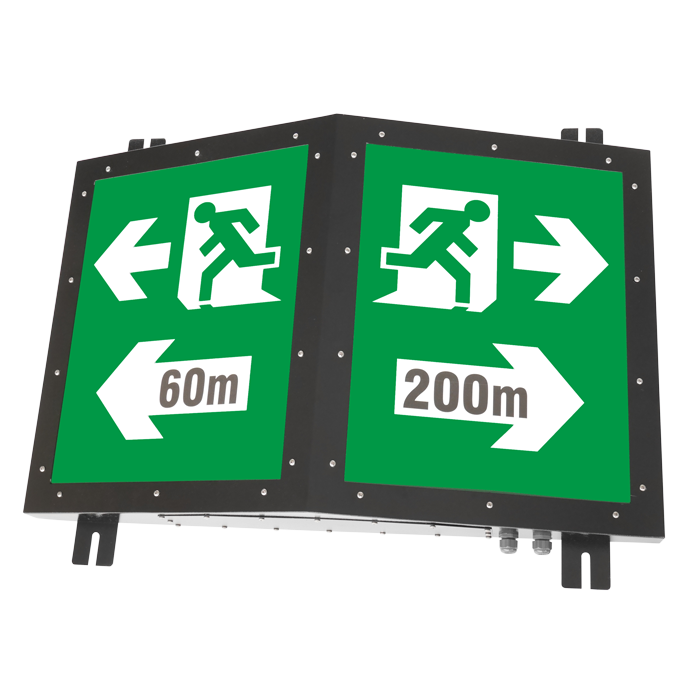

POLITE-T Directional luminaire is used for marking escape doors in tunnel structures on highways with its durable structure and long life led lamps.
• IP65 protection class against dust and water.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.
PRODUCT FEATURES
|
POLITE-T EMERGENCY GUIDANCE FIXTURE |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |

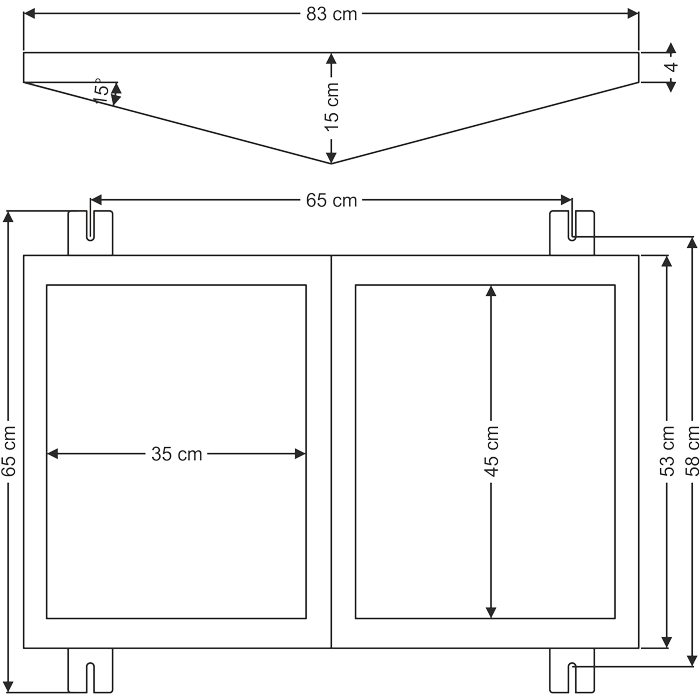

DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
| POT-1213 |
Maintained |
2X2000lm |
Emergency
180 m. |
150x830x530mm |
18,5kg |
65 |
I |
-16/+45° |
35w |
220-240 |
| POT-1010 |
Mains-Light |
2X2000lm |
_ |
150x830x530mm |
17kg |
65 |
I |
-16/+45° |
30w |
220-240 |
