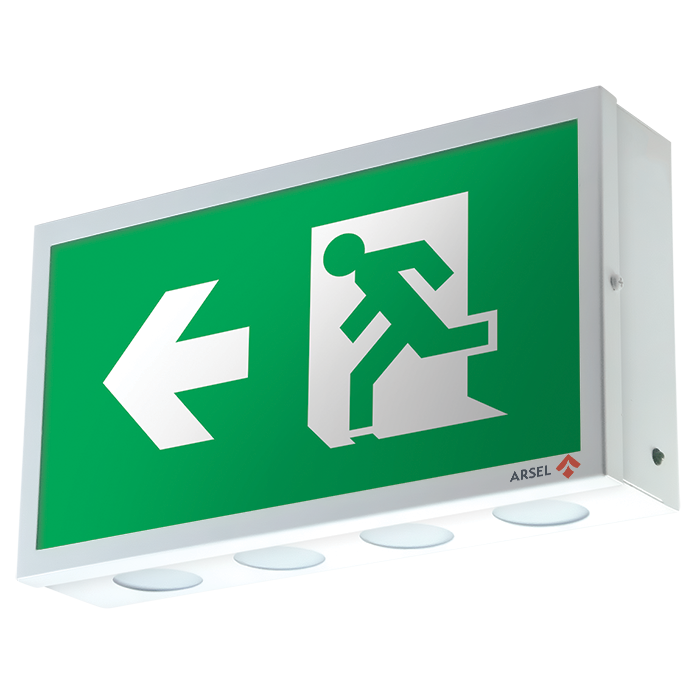

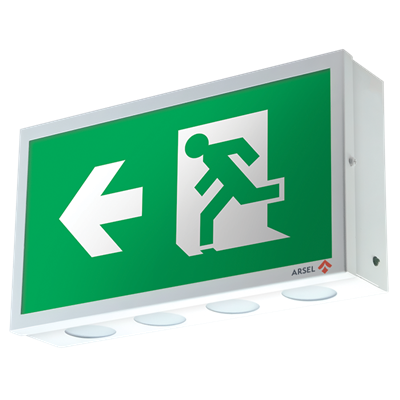

• Surface mounting, metal sheet case
• At the bottom, 4 round lighted windows for floor lighting
• 3 mm thick acrylic light panel
USAGE AREAS
• Offices
• Grocery stores
• Corridors
• Restaurants and bars
• Universities, Student dormitories, Schools and colleges
LAMP OPTIONS
• White light LED bulb, 6500°K
BODY STRUCTURE
• Body - Powder white painted sheet metal chassis
• With label panel - 3 mm acrylic panel, application of latex on white foil
• BATTERY - Nickel-cadmium in all models
OPTIONS
• Continuous and emergency models.
• 1-3 hour emergency backup times.
PRODUCT DOCUMENT
PRODUCT INFORMATION
• For door-top applications, suitable for standards, for decorative emergency exit routing.
• is an independent emergency exit orientation luminaire located within the battery and power supply..
• Continuous charging method keeps the battery pack full and ready.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts.
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.
PRODUCT FEATURES
|
DEKOLITE EMERGENCY GUIDANCE FIXTURE |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |

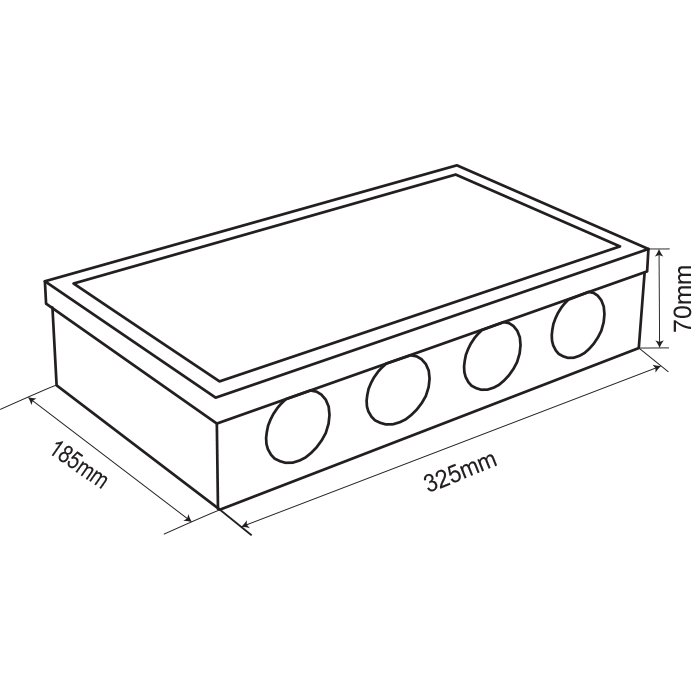

DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
| AES-3211 |
Maintained |
10 led 500lm |
Emergency 60 m. |
70x325x185mm |
1,60kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
| AES-3213 |
Maintained |
10 led 500lm |
Emergency 180 m. |
70x325x185mm |
1,67kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
|
DEKOLITE + SERIES SHEET METAL
CASE EMERGENCY GUIDANCE FIXTURE |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |
DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
|
AE-5113-L |
Non-Maintained |
1000lm LED |
Emergency 180 m. |
75x650x350mm |
5,40kg |
40 |
I |
-16/+45° |
2w |
220-240 |
| AE-5213
-L |
Maintained |
1000lm LED |
Emergency 180 m. |
75x650x350mm |
5,40kg |
40 |
I |
-16/+45° |
11w |
220-240 |
| AE-5010
-L |
Mains-Light |
1000lm LED |
- |
75x650x350mm |
4,50kg |
40 |
I |
-16/+45° |
9,5w |
220-240 |
