• Self-testing feature

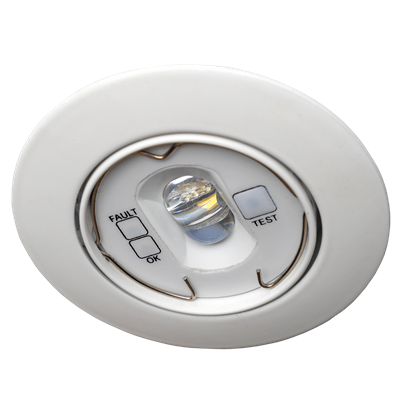

• Recessed mounting led emergency lighting fixture
USAGE AREAS
• Fire alarm button region
• Fire hose or extinguisher tube area
• Areas with rising or falling ground level
• Corridors
LAMP OPTIONS
• White light LED bulb, 6500°K
BODY STRUCTURE
• Body - Electrostatic powder coated metal sheet case. Ceiling mounting with spring
• Electronic module - Aluminum profile body, ABS plastic side cover
• BATTERY - Nickel-cadmium in all models
OPTIONS
• Emergency mode only.
• 1-3 hour emergency backup times
PRODUCT DOCUMENT
PRODUCT INFORMATION
• Includes battery, power supply unit and LED spot..
• Power module chassis with aluminum profile housing
• Plug-in type battery connection with anti-plug protection.
• Emergency mode only
• Mounting hole diameter 75 mm
• Continuous charging method keeps the battery pack full and ready.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.
WORKING METHOD
• Performs a functional test every 15 days after installation. The function test is performed automatically or by pressing and holding the button for 1 second.
• Switches the device to emergency mode for 60 seconds, tests the lamp, battery and other functions.
• Duration test once a year makes. Time test is done automatically or by pressing the button more than 3 seconds. Checks whether the device provides the declared feed time.
• Green LED, with different burning modes, displays the commands given by charge, test and button.
• Red led shows different burning modes and battery and LED faults.
• The device may show battery and LED malfunctions even in stand-by mode.
• Button is used to test function and malfunction reset operation. (red led contains fault memory, must be reset when fault is cleared)
• The device only allows for manual testing if it is sufficiently charged. Otherwise it just tests the function.
• The device safety is never compromised by the control circuit. Even if the controls are not running, the device will operate normally in emergency mode.
PRODUCT FEATURES
|
STARLUX RECESSED MOUNTED EMERGENCY LIGHTING FIXTURE |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |
DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
| STA-101 |
Non-Maintained |
2W LED |
Emergency 60
m. |
85X23mm |
400 gr |
30 |
I |
-16/+45° |
1,5 W |
220-240 |
|
STA-103 |
Non-Maintained |
2W LED |
Emergency
180 m. |
85X23mm |
400 gr |
30 |
I |
-16/+45° |
1,5 W |
220-240 |
