• Surface mounting, metal sheet case
• 3 mm thick acrylic light panel
USAGE AREAS
• Factories
• Stores
• Covered parking lots
LAMP OPTIONS
• White light LED bulb, 6500°K
BODY STRUCTURE
• Body - Powder white painted sheet metal chassis
• With label panel - 3 mm acrylic panel, application of latex on white foil
• BATTERY - Nickel-cadmium in all models
OPTIONS
• Continuous and emergency models.
PRODUCT DOCUMENT
PRODUCT INFORMATION
• Ceiling mounted luminaire provides visible guidance in large, long distances
• is an independent emergency exit orientation luminaire located within the battery and power supply.
• Continuous charging method keeps the battery pack full and ready.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts.
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.
PRODUCT FEATURES
|

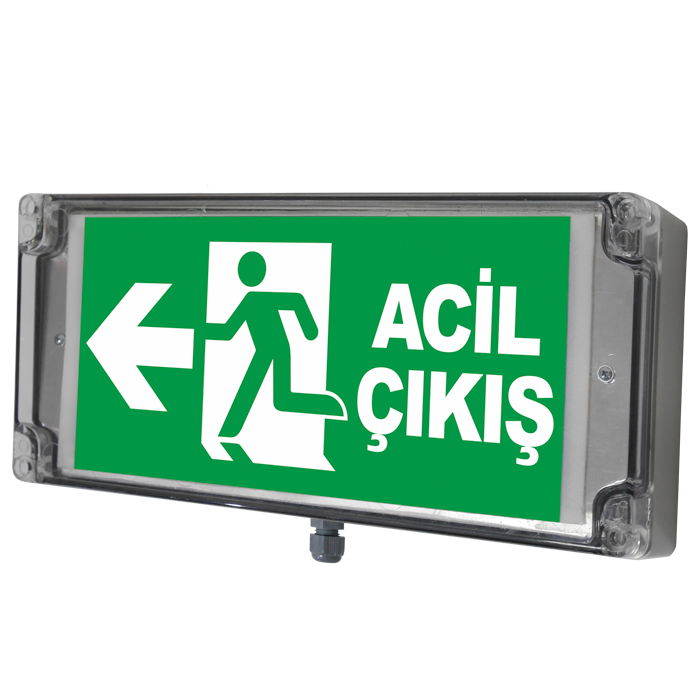

STARLITE-IP65 EMERGENCY LIGHTING AND GUIDANCE FIXTURE |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |
DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
|
AE-65-01213-L |
Sürekli |
10 led 500lm |
Emergency
180 m. |
58x335x148mm |
1,5kg |
65 |
I |
-16/+45° |
5,5w |
220-240 |
|
AE-65-01113-L |
Acilde |
10 led 500lm |
Emergency
180 m. |
58x335x148mm |
1,5kg |
65 |
I |
-16/+45° |
5,5w |
220-240 |
