• Surface mounting, extruded aluminum profile body, ABS plastic corners.
• 3mm acrylic diffuser
• Different size options
• Two-sided illuminated panel luminaire
USAGE AREAS
• Offices
• Grocery stores
• Warehouses
• Parking lots and large areas
• Hospitals
• Corridors
• Restaurants and bars
• Universities, Student dormitories, Schools and colleges
LAMP OPTIONS
• White light LED bulb, 6500°K
BODY STRUCTURE
• Body - Extruded aluminum profile body, ABS plastic brackets
• With label panel - 3 mm acrylic panel, application of latex on white foil
• BATTERY - Nickel-cadmium in all models
OPTIONS
• Continuous and emergency models.
• 1-3 hour emergency backup times.
PRODUCT DOCUMENT
PRODUCT INFORMATION

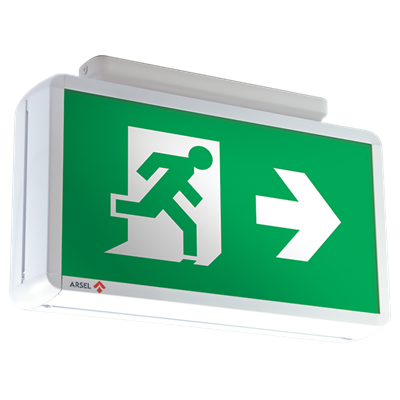

• It can be used in ceiling mount applications, with aluminum profile body, fluorescent bulb and LED, decorative emergency exit directional fitting.
• The model table is divided into 3 according to the measurement. Electrostatic powder coated aluminum profile and rear mounting plate combined with ABS brackets
• is an independent emergency exit orientation luminaire located within the battery and power supply..
• Continuous charging method keeps the battery pack full and ready.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts.
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.
PRODUCT FEATURES
|
DEKOLITE Z SERIES (DOUBLE SIDED) |
|
MODEL CODE |
LIGHTING
STYLE |
LAMP |
DURATION |
DIMENSIONS
(W-L-H)mm |
WEIGHT |
IP
Class |
İsolation
Class |
Operation
Temp |
POWER |
Operation
Voltage |
|
AE-3123-L |
Non-Maintained |
500lm LED |
Emergency
180 m. |
75x320x165mm |
2,25kg |
40 |
I |
-16/+45° |
1w |
220-240 |
|
AE-3223-L |
Maintained |
500lm LED |
Emergency
180 m. |
75x320x165mm |
2,25kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
| AE-4123
-L |
Non-Maintained |
500lm LED |
Emergency
180 m. |
75x400x180mm |
2,60kg |
40 |
I |
-16/+45° |
1w |
220-240 |
|
AE-4223 -L |
Maintained |
500lm LED |
Emergency
180 m. |
75x400x180mm |
2,60kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
|
AE50-5221-L(500) |
Maintained |
500lm LED |
Emergency 60
m. |
75x500x250mm |
4,5kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
|
AE50-5223-L(500) |
Maintained |
500lm LED |
Emergency
180 m. |
75x500x250mm |
4,51kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
|
AE60-5221-L(500) |
Maintained |
500lm LED |
Emergency 60
m. |
75x600x400mm |
6,65kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
|
AE60-5223-L(500) |
Maintained |
500lm LED |
Emergency
180 m. |
75x600x400mm |
6,66kg |
40 |
I |
-16/+45° |
5,5w |
220-240 |
