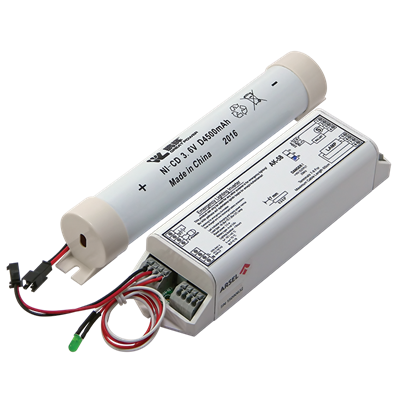

AK-58 Emergency Battery Pack For Fluorescent's

• Emergency backup units for fluorescent lamps
• It can be used with an armature mounted inside or with an external box.
• Supplied with Ni-Cd Battery.
USAGE AREAS
• 18-36 wat T8 Fluorescent Bulb Fixtures
• Emergency lighting and guidance fittings
• Downlight type, PL bulb lighting fixtures
BODY STRUCTURE
• Body - Electrostatic powder coated aluminum case. ABS plastic covers.
BATTERY
• BATTERY - Nickel-cadmium in all models
OPTIONS
• Model choices according to lamp type and power
• 1-2-3 hour emergency backup times.
PRODUCT DOCUMENT
  PRODUCT INFORMATION
• Provides power failure backup for fluorescent lamps.
• It can work with all magnetic and electronic ballasts.
• Mounted within the housing of the fittings that is used for lighting, emergency lighting is provided to do.
• The lamp's 4 connections are switched at once.
• With fully insulated supply circuit and the lamp contacts, there is no damage due to the different phase connections.
• Appropriate kit should be selected according to the lamp.
• Plug-in type latching type terminals are used for easy installation.
• The mains supply voltage is standard 220 volts AC 50 Hz.
• Charging time for first use is 24 hours.
• It can withstand fluctuations up to 285 volts at mains voltage.
• Switches to emergency lighting mode under 150 volts, charging over 185 volts
• It is manufactured according to TS 8710 EN60598-2-22 standard in the framework of ISO 9001-2000 quality management system.

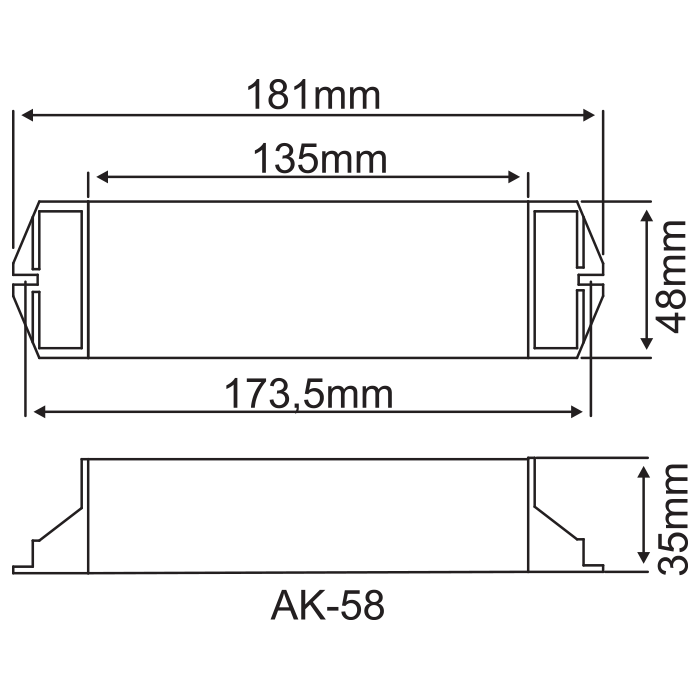

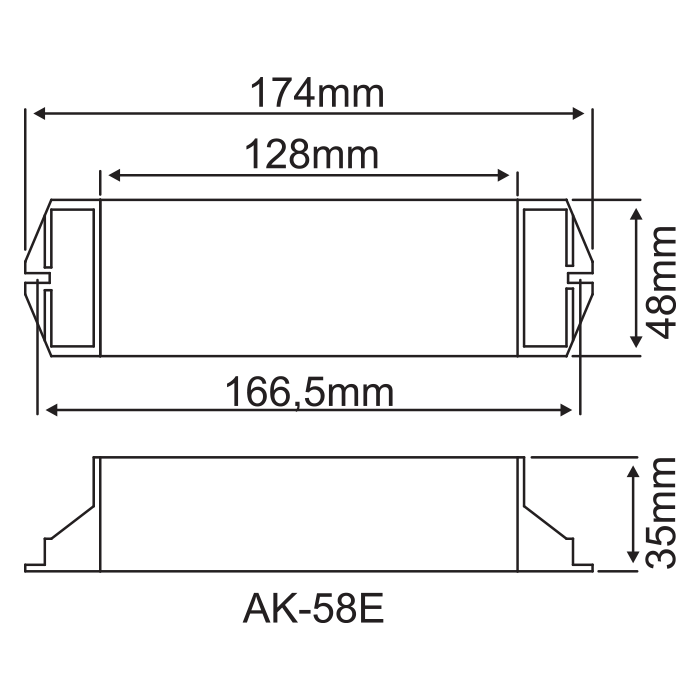

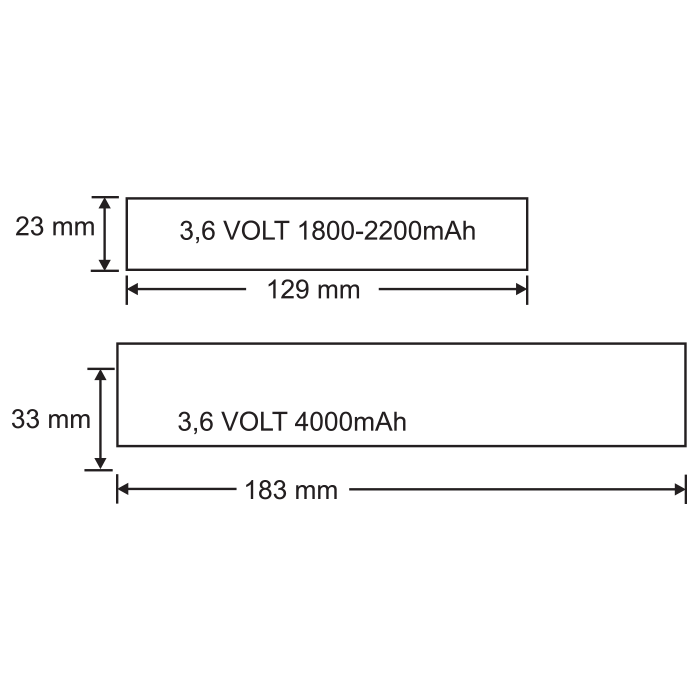

  TECHNICAL DRAWINGS
  PRODUCT FEATURES
EMERGENCY BATTERY PACKS FOR FLUORESCENT LIGHTS
MODEL CODE   LIGHTING STYLE USAGE TYPE LAMP  DURATION BATTERY WEIGHT
(Batt. inc.)		 IP
CLASS		 ISOLATION CLASS OPERATION
TEMP		 POWER CONSUMPTION OPERATING VOLTAGE BLF
AK-468-1 Non-maintained  Internal 6-8W T5 Fluorescent Emergency 60 min.  3 cell AA size 0,28kg 30 I -16/+40° 1,5 watt 220-240 >%30
AK-468-2 Non-maintained  Internal 6-8W T5 Fluorescent Emergency 120 m.  3 cell SC size 0,35kg 30 I -16/+40° 1,5 watt 220-240 >%30
AK-468-3 Non-maintained  Internal 6-8W T5 Fluorescent Emergency 180 m.  3 cell SC size 0,38kg 30 I -16/+40° 1,5 watt 220-240 >%30
AK581 Non-maintained  Internal 18-58w T8  ----  7-26w PL Emergency 60 min.  3 cell SC size 0,39kg 30 I -16/+40° 3,2 watt 220-240 >%19
AK582 Non-maintained  Internal 18-58w T8  ----  7-26w PL Emergency 120 m.  3 cell D size 0,6kg 30 I -16/+40° 3,2 watt 220-240 >%19
AK583 Non-maintained  Internal 18-58w T8  ----  7-26w PL Emergency 180 m.  3 cell D size 0,6kg 30 I -16/+40° 3,2 watt 220-240 >%19
AK-141 Non-maintained  Internal 13-14W T5 Fluorescent Emergency 60 min.  5 cell SC size 0,44kg 30 I -16/+40° 1,5 watt 220-240 >%40
AK-143 Non-maintained  Internal 13-14W T5 Fluorescent Emergency 180 m.  2X5 cell SC size 0,67kg 30 I -16/+40° 1,5 watt 220-240 >%40
AK541 Non-maintained  Internal 18-58wT8, 7-26wPL, 28-54wT5 Emergency 60 min.  5 cell SC size 0,45kg 30 I -16/+40° 3,2 watt 220-240 >%22
AK543 Non-maintained  Internal 18-58wT8, 7-26wPL, 28-54wT5 Emergency 180 m.  5 cell D size 0,75kg 30 I -16/+40° 3,2 watt 220-240 >%22
AK581-E Non-maintained  Internal 18-36w T8  ----  7-18w PL Emergency 60 min.  3 cell SC size 0,35kg 30 I -16/+40° 1,5 watt 220-240 >%19
AK583-E Non-maintained  Internal 18-36w T8  ----  7-18w PL Emergency 180 m.  2x3 cell SC size 0,55kg 30 I -16/+40° 1,5 watt 220-240 >%19
KIT SELECTION TABLES FOR LAMP
TYPE T5 T8 SE-DE COMPACT DULUX L-F CIRCLINE
W 6 8 13 14 36 54 18 36 58 7 9 13 18 26 36 54 22T5 40T5
468-1 X X
468-2 X X
468-3 X X
581-E             X X   X X X X
583-E             X X   X X X X
581             X X   X X X X X
582             X X   X X X X X
583             X X   X X X X X
141     X X
143     X X
541         X X X X X X X X X X X X X X
542         X X X X X X X X X X X X X X
